標題: [Docking] [報告]UNITEK Y-1039B SATA to USB3.0 可以支援光碟機 [打印本頁]

---

作者: harryytm    時間: 2016-1-20 00:10     標題: [報告]UNITEK Y-1039B SATA to USB3.0 可以支援光碟機

本帖最後由 harryytm 於 2016-1-21 14:11 編輯

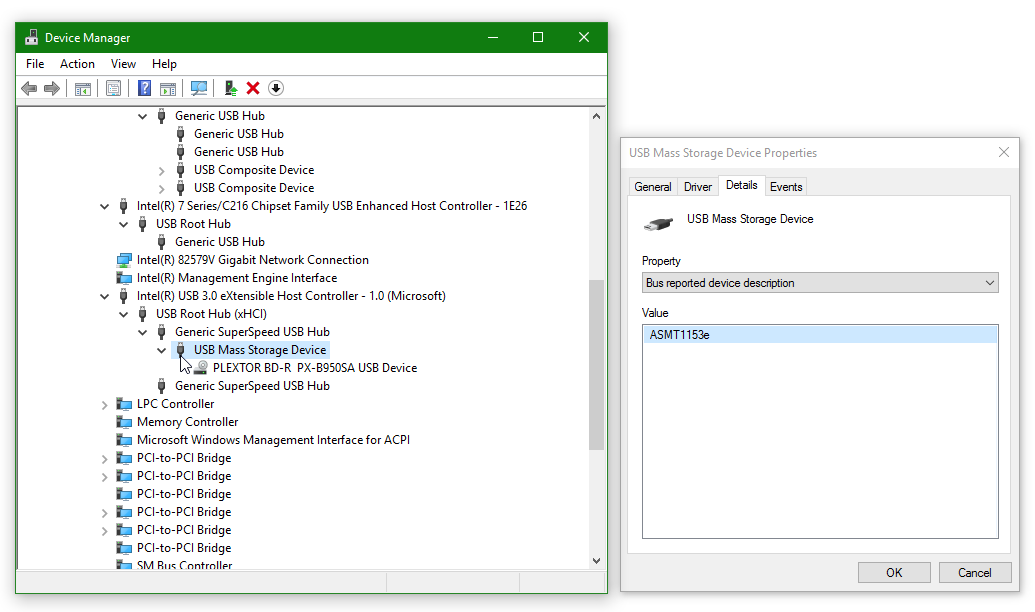

今日$100有找在Cut*買咗個UNITEK Y-1039B SATA to USB3.0轉接器連2.5" HDD保護膠盒，接上12V電源之後插落SATA的光碟機可以正常運作，將內置SATA光碟機變成外置光碟機一樣使用。



圖片附件: screenshot.1453220241.png (2016-1-20 00:17, 36.69 KB) / 下載次數 257
https://www.hkepc.com/forum/attachment.php?aid=1859460&k=e56d5a3d350dbba058db67821bb032f7&t=1782038533&sid=28jGbkeHFa



圖片附件: 2016-01-21-14-03-54.jpg (2016-1-21 14:11, 112.52 KB) / 下載次數 248
https://www.hkepc.com/forum/attachment.php?aid=1859743&k=e2508aef2c01a12bf07ce098336b7016&t=1782038533&sid=28jGbkeHFa

---

作者: anon893    時間: 2016-1-20 12:32

回覆 1# harryytm
Except this one has no power switch, not so convenient if used with optical disc drive

Would prefer this instead
http://www.unitek-products.com/en/product_detail.php?id=196

---

作者: harryytm    時間: 2016-1-20 12:53


I would like to buy one of these, any shop sell this?

---

作者: anon893    時間: 2016-1-20 13:09


Not many stores carry the Y-3322, and definitely cut* does NOT carry it
Your best bet is 298, should be a few stores there that carry it
Just make sure you get the English-labelled version for full local warranty

---

作者: harryytm    時間: 2016-1-20 22:32

本帖最後由 harryytm 於 2016-1-21 02:04 編輯

回覆 4# anon893
Ching do you know any 4-bay enclosure uses ASMedia chipset?

So far only ASMedia chipset would behave what I want:
1. Don't sleep the HDD by itself
2. Spindown on eject
3. Report power mode properly


This UNITEK Y-1039B adapter I bought uses ASM1153E
http://www.asmedia.com.tw/eng/e_show_products.php?cate_index=97&item=133
It can report power mode properly, which is a very important feature I want not to wake standby HDD.

>smartctl /dev/pd5 -d sat -a -n standby
smartctl 6.4 2015-06-04 r4109 [x86_64-w64-mingw32-win8] (sf-6.4-1)
Copyright (C) 2002-15, Bruce Allen, Christian Franke, www.smartmontools.org

Device is in STANDBY mode, exit(2)

Another Orico HDD dock I own which uses JMS561U don't report power mode properly.

>smartctl /dev/pd5 -d sat -a -n standby
smartctl 6.4 2015-06-04 r4109 [x86_64-w64-mingw32-win8] (sf-6.4-1)
Copyright (C) 2002-15, Bruce Allen, Christian Franke, www.smartmontools.org

CHECK POWER MODE: incomplete response, ATA output registers missing
CHECK POWER MODE not implemented, ignoring -n option
=== START OF INFORMATION SECTION ===
Model Family:     SAMSUNG SpinPoint M5
Device Model:     SAMSUNG HM160HI

---

作者: appiah    時間: 2016-1-20 23:17

本帖最後由 appiah 於 2016-1-21 14:02 編輯

TB

個人覺得U牌好過O牌, 起碼同一樣野U牌都平D, so far買過幾樣野都OK.

---

作者: harryytm    時間: 2016-1-21 13:27

本帖最後由 harryytm 於 2016-1-21 13:37 編輯

回覆 4# anon893
I think that Y-1039B is way more compact than Y-3322, here is how I use it:

---

作者: pc1668    時間: 2016-1-21 13:46

回覆 1# harryytm

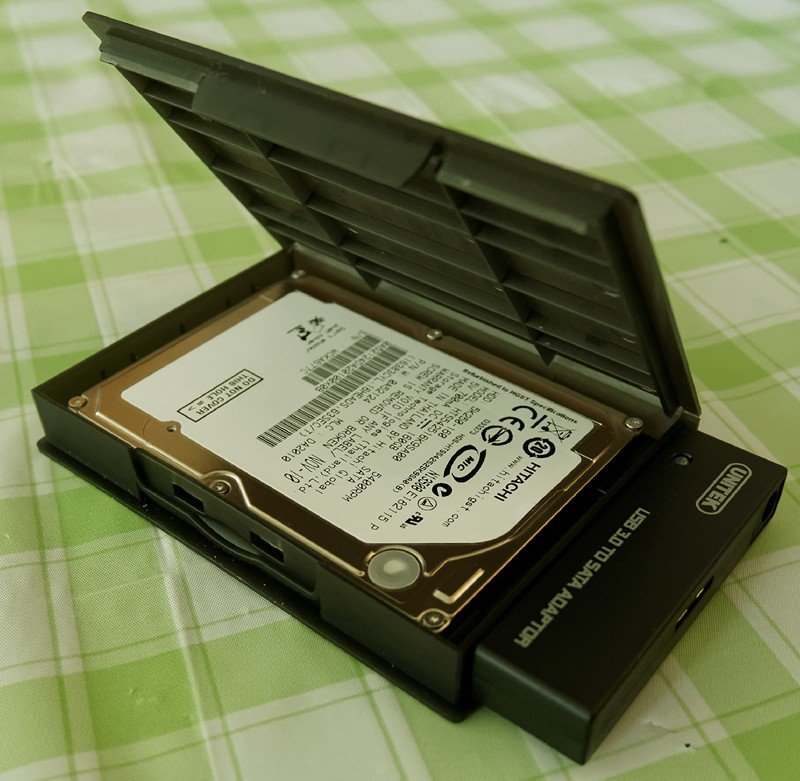

What a coincidence, I'm also using this hdd box (bought it at about $80)



圖片附件: P4680147_DxOv10.4.2_DxOv10.4.2_1280_small.jpg (2016-1-21 13:46, 147.68 KB) / 下載次數 226
https://www.hkepc.com/forum/attachment.php?aid=1859735&k=194887d387f2e1e68af14c3e50eacf34&t=1782038533&sid=28jGbkeHFa

---

作者: pc1668    時間: 2016-1-21 13:48



As per my user experience, U牌 is much much better than O牌.

---

作者: harryytm    時間: 2016-1-21 13:48

回覆 8# pc1668
I don't use the plastic case shipped with the adaptor, just placed the HDD on the desktop on top of a static shielding bag.

---

作者: harryytm    時間: 2016-1-21 13:50

回覆 9# pc1668
As far I know O brand always ship with bad PSU, the weight light as feather.

---

作者: pc1668    時間: 2016-1-21 13:50



Yeah, no problem.  That's the flexibility of this product!

---

作者: pc1668    時間: 2016-1-21 13:53



O brand with bad PSU, absolutely yes!
I will stay away from it ... forever.

---

作者: pc1668    時間: 2016-1-21 13:56

I think we can also fit a SSD into this little box

---

作者: anon893    時間: 2016-1-21 14:09

回覆 7# harryytm
Yes Y1039b is more compact, but I want something more versatile, so I chose the Y3322 instead

Y1039 is good, but given its nature, no built-in switch was being implemented which is a deal breaker for me

Just one important thing to note, when connecting bare 2.5" drive make sure everything rests flatly, you don't want the SATA connectors to flex at any instance...
Also connecting with AC adapter would be recommended, as you know your HDD would have no problems with power

Unfortunately I don't use 4-bay enclosures so no idea on what chipset is typically inside

---

作者: anon893    時間: 2016-1-21 14:12


Yes, but you're going to run into the same problems stated here
http://goughlui.com/2014/08/26/a ... 56gb-storejet-25s3/

---

作者: harryytm    時間: 2016-1-21 14:13

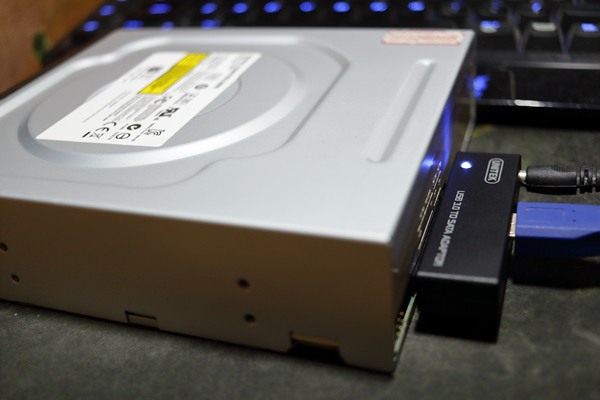

Here is how I use it to hook up an internal ODD, fully functional:

---

作者: pc1668    時間: 2016-1-21 14:33



pretty bad.  Then I won't put my 370S into this box.

---

作者: mig33    時間: 2016-1-30 21:31

日本買呢個

---

作者: pc1668    時間: 2016-1-30 21:42



pretty expensive ?

---

作者: mig33    時間: 2016-1-30 21:56

本帖最後由 mig33 於 2016-1-30 22:17 編輯

回覆 20# pc1668

~JPY2,100

---

作者: jobyball    時間: 2016-2-2 08:55

回覆 1# harryytm

Does it support 3.5" HDD? I connect it to optical drive with power supply and it works normal. But it doesn't work with 3.5" HDD.

---

作者: chinwah    時間: 2016-2-2 12:06

用喺3.5" SATA HDD其實夠唔夠力呢?
因為我想統一晒啲EXT HDD用12V牛,
勁唔鍾意嗰啲dual voltage 5v 12v cheap cheap大陸牛
12v我有好多靚牛又大A數

---

作者: harryytm    時間: 2016-2-2 14:03

本帖最後由 harryytm 於 2016-2-2 14:14 編輯

回覆 23# chinwah

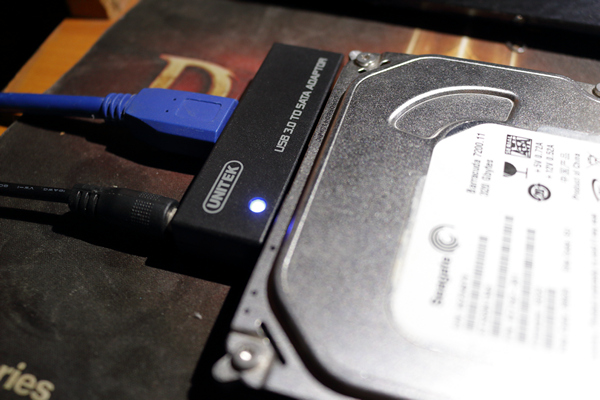

有得插12V，我插過3.5" HDD完全正常。


圖片附件: EOS 100D-2016-02-02-14-11-200010.jpg (2016-2-2 14:14, 141.11 KB) / 下載次數 166
https://www.hkepc.com/forum/attachment.php?aid=1862818&k=a07de4f3a9dd15f8a87b49bc56fb2863&t=1782038533&sid=28jGbkeHFa

---

作者: monsterz    時間: 2016-2-2 15:08

小的係2009年UNITEK出第一代USB3.0 SATA adapter時已開始幫襯, 當年賣百仨蚊, 係市面上難得一個穩定兼速度夠快嘅選擇.
harry大大如果要試ODD穩定性, 可以考慮試高速燒碟, 當年小的就遇到燒到外圈會突然hang死(唔夠火數)的情況.

---

作者: hkpop    時間: 2016-2-3 08:56

回覆 1# harryytm
Harry 師兄, 想問下個牛 12V, 係咪冇包到?
12V 牛要用幾多A? 接 Internal blu-ray Writer 最高速 Stable 嗎?

---

作者: harryytm    時間: 2016-2-3 09:04

UNITEK無比火牛，係我插自已個12V 2A。

---

作者: Stevenchun    時間: 2016-2-3 13:46



yahoo拍賣有火牛版

---

作者: harryytm    時間: 2016-2-3 14:17

本帖最後由 harryytm 於 2016-2-25 00:59 編輯

回覆 28# Stevenchun

又或者去華輝買隻12v 2A或以上嘅MeanWell火牛都得。
http://www.hkepc.com/forum/viewthread.php?tid=2264033
不過呢隻牛個DC頭係5.5mm x 2.1 mm，UNITEK Y-1039B係用5.5mm x 2.5 mm DC插座，要自已喺華輝買料整一個轉插先用到。

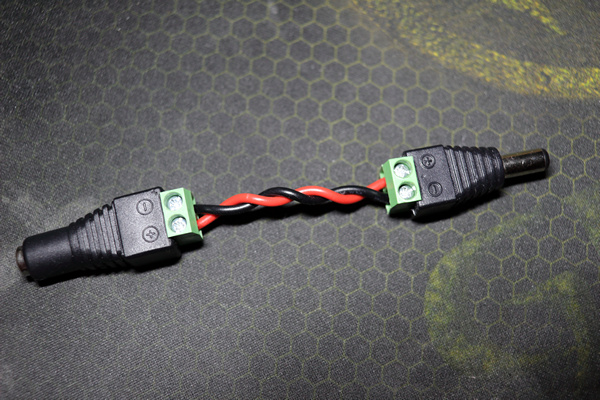

下圖就係我整嘅轉接線，兩個Terminal DC頭都可以喺華輝買到，左邊係5.5mm x 2.1mm DC插座，右邊是5.5mm x 2.5 mm DC插，而接線只係剪舊電腦火牛啲線嚟用，黃金地庫都可以輕易揾到，無需銲接只需用螺絲上緊就得，不過最重要確保正負極正確連接先好用。

12V牛唔用係HDD仲有好多地方用得著。

圖片附件: EOS 100D-2016-02-25-00-44-000012.jpg (2016-2-25 00:48, 138.97 KB) / 下載次數 169
https://www.hkepc.com/forum/attachment.php?aid=1868041&k=82bdbab36bf0d24dde9ef988dadbd07d&t=1782038533&sid=28jGbkeHFa

---

作者: Stevenchun    時間: 2016-2-3 19:06

連SSD速度快唔快？
