ZIDOO X20 PRO

ZIDOO X20 PRO

Once beta testing is complete, and firmware looks stable enough.

------------------------

The weight of the x20 pro with its packaging will weigh 6 kg

Hi-Fi form-factor Standard 43 cm design to fit perfectly into your A/V rack

---------------------------

A new device with the chipset Realtek RTD 1296, it should be available in November.
there is not much information available, I will put what is available for now and I will change my thread based on new information

Zidoo X20 PRO

ZIDOO X20 PRO DRIVES POWER📷

Model: ZIDOO X20 PRO

- Shell: Aviation Aluminum alloy case in smoke-colored- OS: Android 6.0 + OpenWRT(NAS) dual system run simultaneously- CPU: Realtek RTD1296 ARM Quad core A53- GPU: ARM T820 MP3(3-core)- Memory: 4GB DDR4- Internal Storage: 32GB eMMC- Wifi Connectivity: 802.11AC MIMO 2T2R 867Mbps- GIGABIT LAN: 1*RJ-45 Ethernet Jack (10/100/1000Mbps)- Bluetooth: BT4.0

HDMI Port:

+ HDMI2.0a Output *2: (Video and Audio separation output) HDMI with HDCP 2.2 output, Support 4K@60fps Support HD Audio(7.1CH), support 23.976 and 29.94+ HDMI2.0 Input: HDMI with HDCP 2.2 input, support PIP, HDMI IN stream recode and stream output via UDP etc...
+ Video decode: HDR, 10-bit HEVC / H.265 up to 4K @ 60fps, VP9 up to 4K @ 60 fps, H.264 up to 4K @ 24 fps, automatic frame rate switching
+ Audio decode: Support HD audio(7.1ch) decode and passthrough Redesigned Native player, Blu-ray better compatibility, Powerful subtitles, Support MVC ISO, MVC MKV. Built in ZDMC.

Video playback:

+ Support full BD menu function+ Support 4K UHD+ Support frame auto switch(23.976,59.94 etc.)+ Support HDR10+ Media center function(SAMBA + NFS + poster wall)+ Built in ZDMC (Base on kodi 17.4)

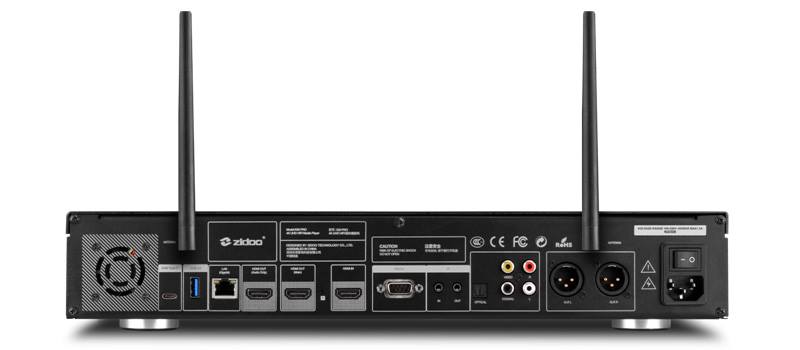

Other interface :

+ USB Port: 1 * USB3.0; 2 * USB2.0 + Power: 100-240VAC 1.3A 50/60 HZ+ RJ45 1000M+ SATA 3.0*2(HDD BAY*2)+ TYPE-C*1+ RS232+ IR output+ IR input+ SPDIF+ Coaxial+ ESS 9038 DAC+ XLR Audio output

What's in the box:

1 x Media Player 1 x Remote control 1 x HDMI cable 1 x Power adapter 1 x User manual 1 x Standard A/V cable
