[Docking] [報告]UNITEK Y-1039B SATA to USB3.0 可以支援光碟機

harryytm

今日$100有找在Cut*買咗個UNITEK Y-1039B SATA to USB3.0轉接器連2.5" HDD保護膠盒，接上12V電源之後插落SATA的光碟機可以正常運作，將內置SATA光碟機變成外置光碟機一樣使用。

下載 (112.52 KB)

2016-1-21 14:11

下載 (36.69 KB)

2016-1-20 00:17

anon893

回覆 1# harryytm
Except this one has no power switch, not so convenient if used with optical disc drive

Would prefer this instead
http://www.unitek-products.com/en/product_detail.php?id=196

harryytm

回覆  harryytm
Except this one has no power switch, not so convenient if used with optical disc dri ...
anon893 發表於 2016-1-20 12:32

I would like to buy one of these, any shop sell this?

anon893

I would like to buy one of these, any shop sell this?
harryytm 發表於 2016-1-20 12:53 PM

Not many stores carry the Y-3322, and definitely cut* does NOT carry it
Your best bet is 298, should be a few stores there that carry it
Just make sure you get the English-labelled version for full local warranty

harryytm

回覆 4# anon893
Ching do you know any 4-bay enclosure uses ASMedia chipset?

So far only ASMedia chipset would behave what I want:
1. Don't sleep the HDD by itself
2. Spindown on eject
3. Report power mode properly


This UNITEK Y-1039B adapter I bought uses ASM1153E
http://www.asmedia.com.tw/eng/e_show_products.php?cate_index=97&item=133
It can report power mode properly, which is a very important feature I want not to wake standby HDD.

>smartctl /dev/pd5 -d sat -a -n standby
smartctl 6.4 2015-06-04 r4109 [x86_64-w64-mingw32-win8] (sf-6.4-1)
Copyright (C) 2002-15, Bruce Allen, Christian Franke, www.smartmontools.org

Device is in STANDBY mode, exit(2)

Another Orico HDD dock I own which uses JMS561U don't report power mode properly.

>smartctl /dev/pd5 -d sat -a -n standby
smartctl 6.4 2015-06-04 r4109 [x86_64-w64-mingw32-win8] (sf-6.4-1)
Copyright (C) 2002-15, Bruce Allen, Christian Franke, www.smartmontools.org

CHECK POWER MODE: incomplete response, ATA output registers missing
CHECK POWER MODE not implemented, ignoring -n option
=== START OF INFORMATION SECTION ===
Model Family:     SAMSUNG SpinPoint M5
Device Model:     SAMSUNG HM160HI

appiah

TB

個人覺得U牌好過O牌, 起碼同一樣野U牌都平D, so far買過幾樣野都OK.

harryytm

回覆 4# anon893

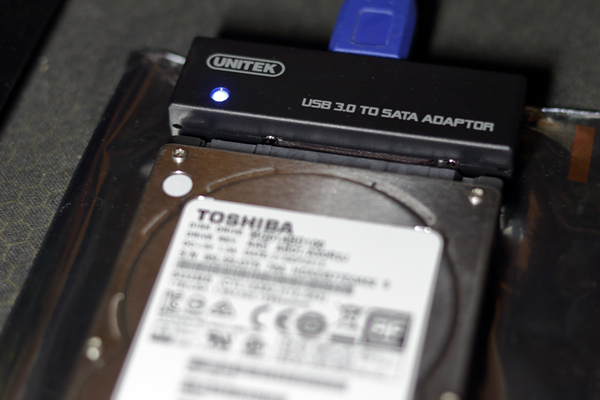

I think that Y-1039B is way more compact than Y-3322, here is how I use it:

pc1668

回覆 1# harryytm

What a coincidence, I'm also using this hdd box (bought it at about $80)

下載 (147.68 KB)

2016-1-21 13:46

pc1668

個人覺得U牌好過O牌, 起碼同一樣野O牌都平D, so far買過幾樣野都OK.
appiah 發表於 2016-1-20 23:17

As per my user experience, U牌 is much much better than O牌.

harryytm

回覆 8# pc1668
I don't use the plastic case shipped with the adaptor, just placed the HDD on the desktop on top of a static shielding bag.
